PURSUIT DC306 DUAL CONSOLE
THE ALL-NEW DC 306
ARRIVING SOON
ARRIVING SOON

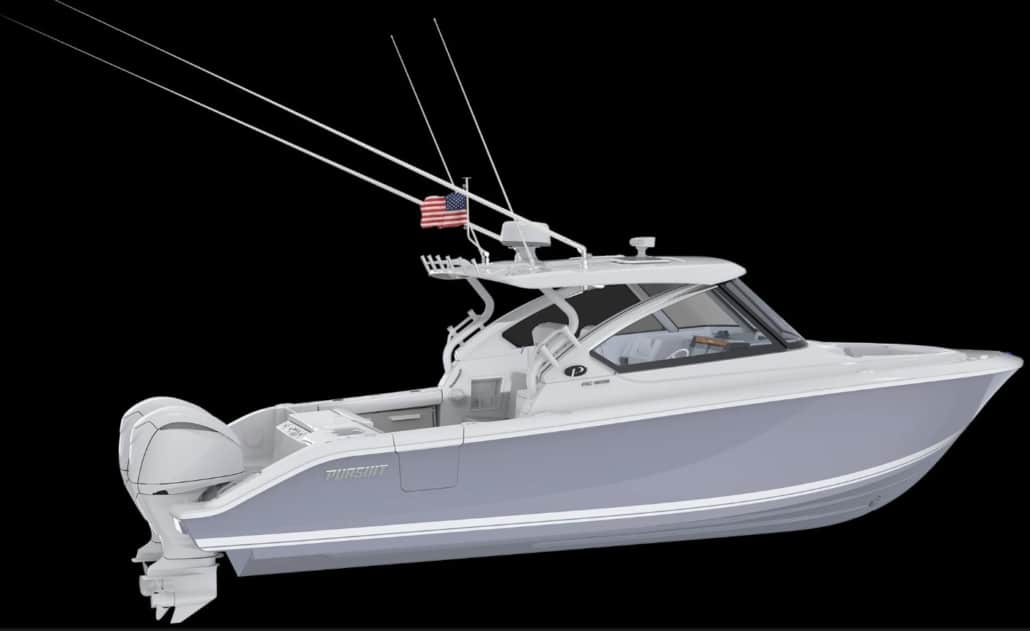

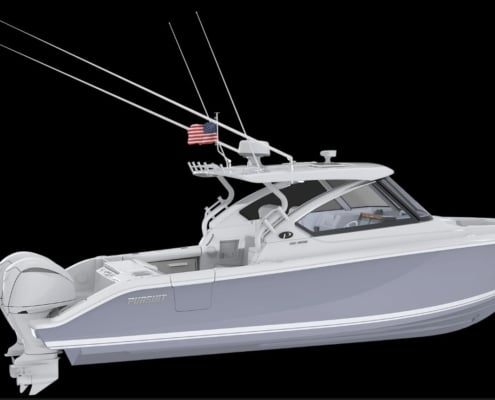

The all-new Pursuit DC 306 builds on the reputation of one of the brand’s most popular Dual Consoles, the DC 295. An integrated hardtop, crystal–clear tempered windshield, convertible seating arrangements and item-specific storage are a few of the highlights in our latest luxury dual console boat.
The forward bow seating is perfect for lounging when the weather is right, or you can enjoy the protection of the full windshield hardtop system to escape the elements. The wide-open layout is built around sport utility, allowing you to fish, cruise, dive and entertain in a Pursuit that sets the standard for the category.
Standards
General
| LENGTH OVERALL | 31′ 11″ (9.37 M) |
| BEAM | 9’ 11” (3.02 M) |
| DRAFT (MOTORS UP) | 2′ 2″ (.66 M) |
| DRAFT (MOTORS DOWN) | 3′ 1″ (.94 M) |
| APPROX. DRY WEIGHT | 10,360 lbs (4,699 KG) |
| FUEL | 239 US Gallons (905 L) |
| WATER | 36 US Gallons (136 L) |
| HOLDING | 9 US Gallons (34 L) |
| MAX HORSEPOWER | 600 hp (447 kw) |
Hull
- Back Cove white iso-npg gelcoat
- Vinylester backup resin
- VIP Resin Infused hull w/ PVC foam core sandwich
- VIP Resin Infused foam core stringer system
- Advanced prop pocket hull design
- Awlgrip boot top
- Molded cove stripe depression w/ “gold leaf” style stripe
Deck
- Back Cove white iso-npg gelcoat w/ graystone anti-skid on walking surfaces
- VIP Resin infused balsa core sandwich structure
- Mooring cleats forward, aft and spring line cleats. Aft cleats are pull-up style
- SS anchor roller
- Anchor locker w/ ground tackle storage
- LED Running lights
- Teak accent stripe on cabin side
- Custom 1-1/4’’ 316L stainless steel perimeter rail
- SS handrails on hard top, port, and starboard
- Compressed air horn on hardtop (mast opt.)
- (4) opening Port lights w/ insect screens
- Port & starboard molded steps leading to side & fore deck
- Molded quarter seating in cockpit w/ storage, port, and starboard
- Transom door on centerline
- Swim platform w/ SS under-mount swim ladder
- Hot and cold cockpit shower
- Self-draining cockpit
- Pop-up fender cleats on cockpit coamings
Mechanical Systems
- Yanmar 8L V320 mhp engine and Kanzaki marine gear
- 1.5’’ Aquamet shaft (1.75” w/ optional engines)
- 4 Blade NiBrAl propeller
- PSS Dripless shaft log
- Binnacle mount, electronic single lever engine control
- Engine instruments w/ alarms and hour meter
- Internal sea strainer
- 160-gallon fuel tank w/ 2’’ fill
- Racor Fuel Filter
- 6’’ Exhaust w/ two stage horizontal muffler
- Electric actuated trim tabs port and starboard w/ helm controller
- SeaStar hydraulic steering w/ tilting helm pump
- SidePower bow thruster w/ joy stick control (SE40i)
- Hot and Cold pressurized water system
- 8-gallon hot water heater w/ heat exchanger
- Marelon sea valves on underwater thru hulls
- Automatic Fireboy extinguisher system w/ manual back-up
Electrical Systems
- AC and DC control panels with polarity indicator
- DC system battery management switching
- 12V outlet at helm and in cabin
- Emergency cross over switch / ACR
- 120V AC 30 amp shore power w/ 50-foot cord set
- AC shore power system ELCI protected
- Galvanic isolator
- GFI protected 120V circuits
- Battery Charger
- (2) 31 AGM house battery
- (2) Group 31 AGM engine start battery
- (2) 12VDC bilge pumps
- Bonding system w/ zinc transom anode
- Engine room lighting
- Cockpit courtesy lights switched at transom door and helm
- Overhead LED cabin lights, individually bezel switched
- Reading lights in berth area
- Overhead bi-color LED helm deck light w/ switch
Head/Sanitary Systems
- Built-in vanity w/ sink and storage
- Stainless steel opening port w/ insect screen and shade
- Cherry framed mirror
- Solid surface countertop
- Pull out single lever faucet / shower
- Shower sump and pump system w/ overboard discharge
- Standard size fresh water electric MSD with holding tank
- Waste tank gauge
- Macerator for holding tank overboard discharge as permitted
- Holding tank pump out fitting on deck
- Sealed overhead lighting w/ bezel switch
- Powered exhaust fan (12V)
- Fresh water tank level gauge
Helm Deck
- Clear anodized aluminum windows w/ opening windows port, starboard and center.
- (3) windshield wipers w/ fresh water washer system
- Lewmar sliding hatch w/ OCEANair Skyscreen
- Compass, illuminated
- Arrigoni helm seat (Choose white or tan vinyl)
- White translucent acrylic companionway slider w/ lockable latch
- Raised L-settee seating aft of helmsman
- Mates bench seat to port, removes to face aft
- Raised settee to port w/ backrest converts to berth
Galley
- Alcohol / 120V single burner stove w/ cover
- SS front loading AC/DC fridge
- Galley sink with single lever faucet & drop in cover
- Solid surface countertop
- Countertop cabinet storage
- Built-in microwave
- Drawer and doors storage below counter
Cabin
- Varnished Cherry interior joinery on molded composite liner
- Lewmar hatch w/ OCEANair Skyscreen
- Custom hi-lo table w/ Birdseye Maple inlay
- V-berth w/ filler and cushion, converts to dinette
- Shelves outboard of berth
- Cedar lined hanging locker
- Cherry hull ceilings
- “Teak and Holly” high pressure laminate cabin sole w/ surface texture
- Charging station (AC/DC/USB)
- Sirius- XM ready Fusion stereo system w/Bluetooth connectivity. Interior and helm deck speakers
- Storage under dinette and forward berth
