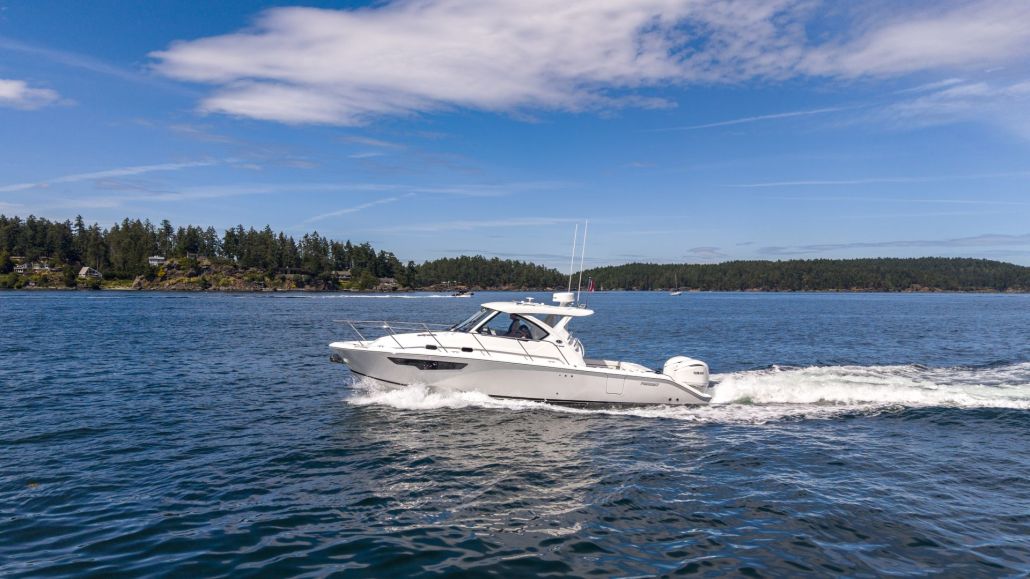

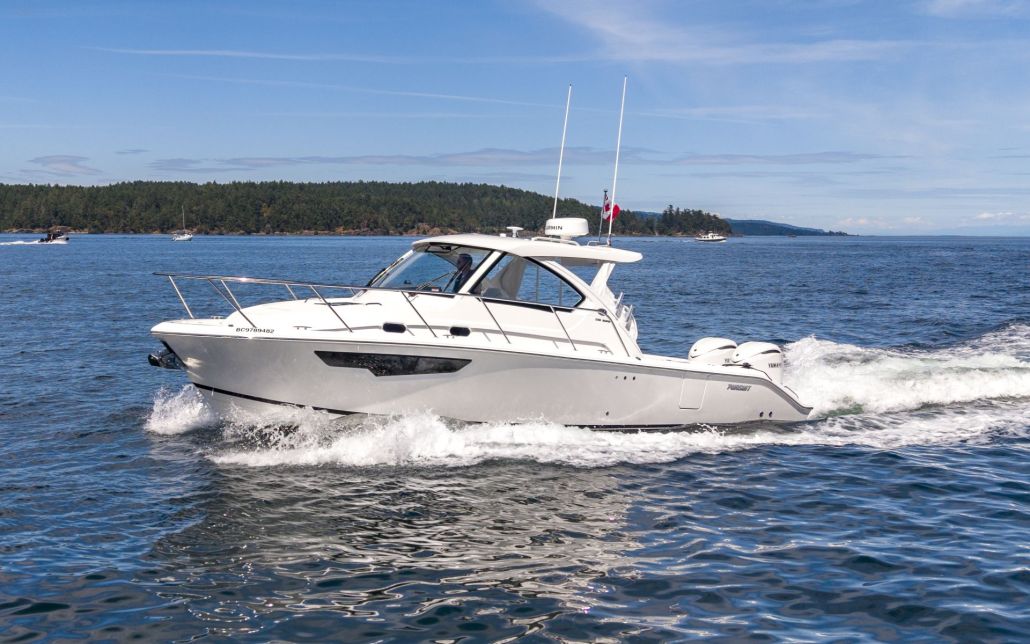

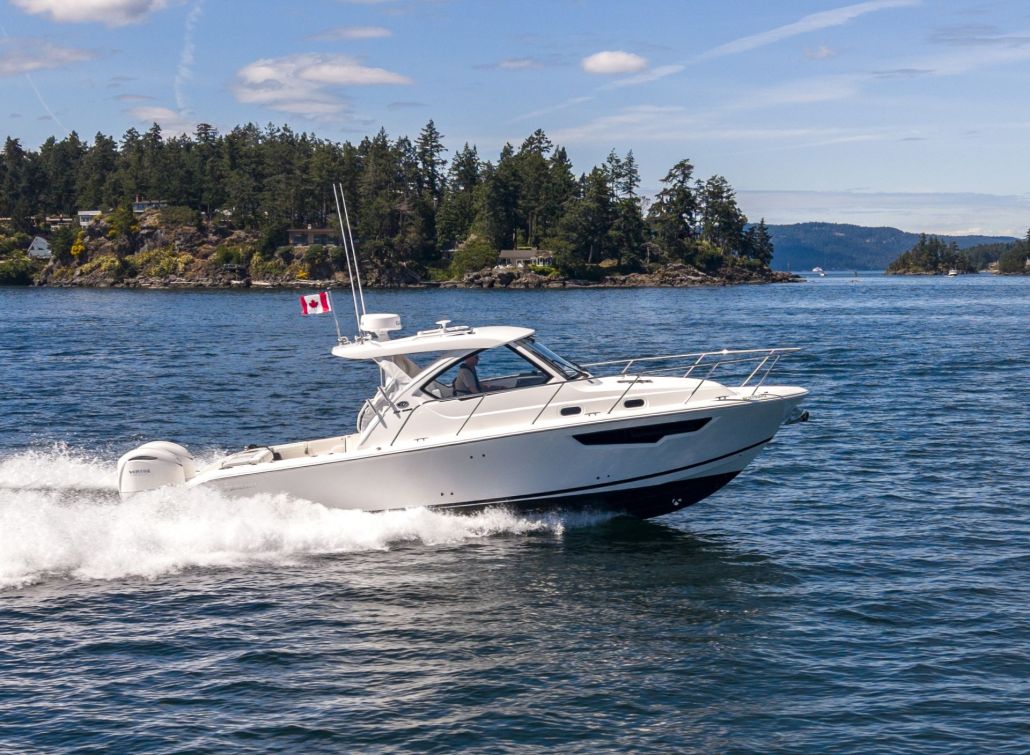

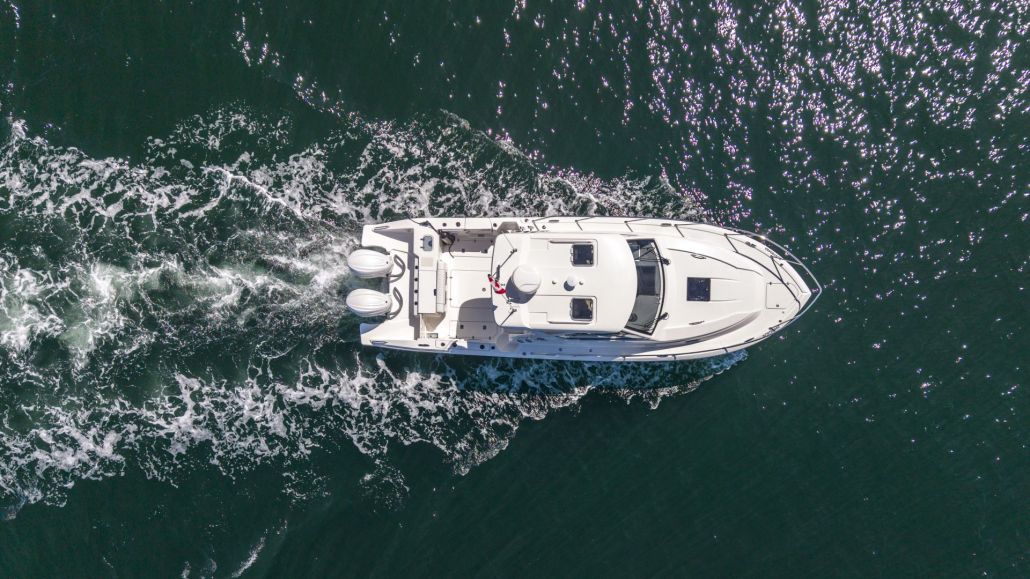

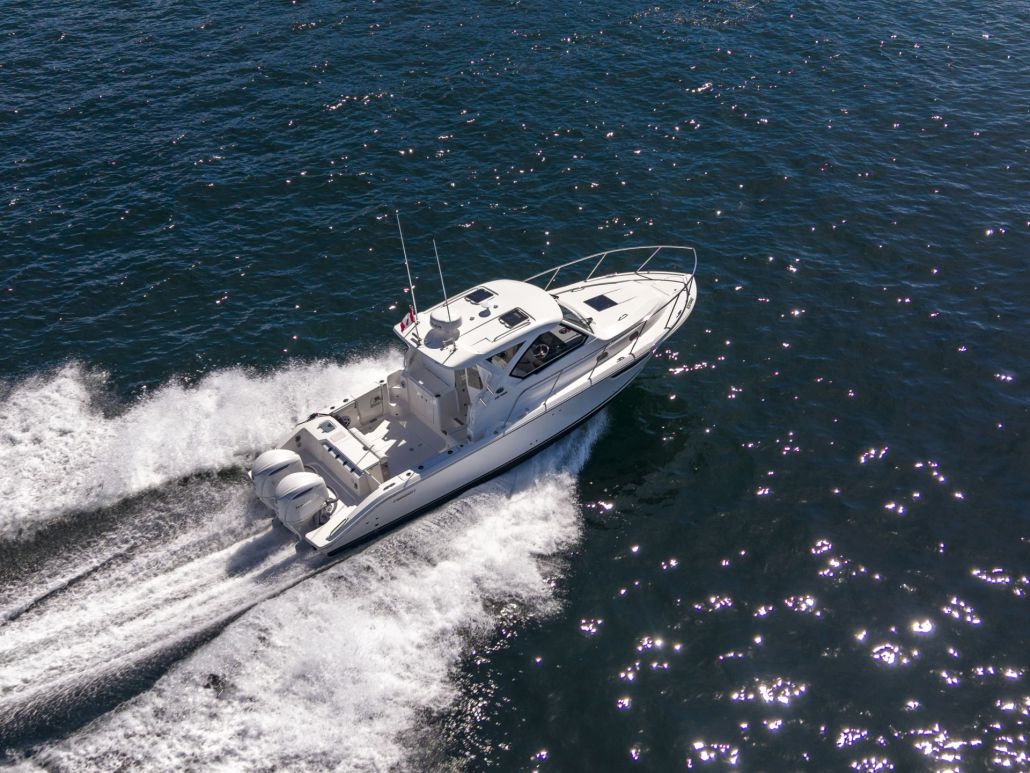

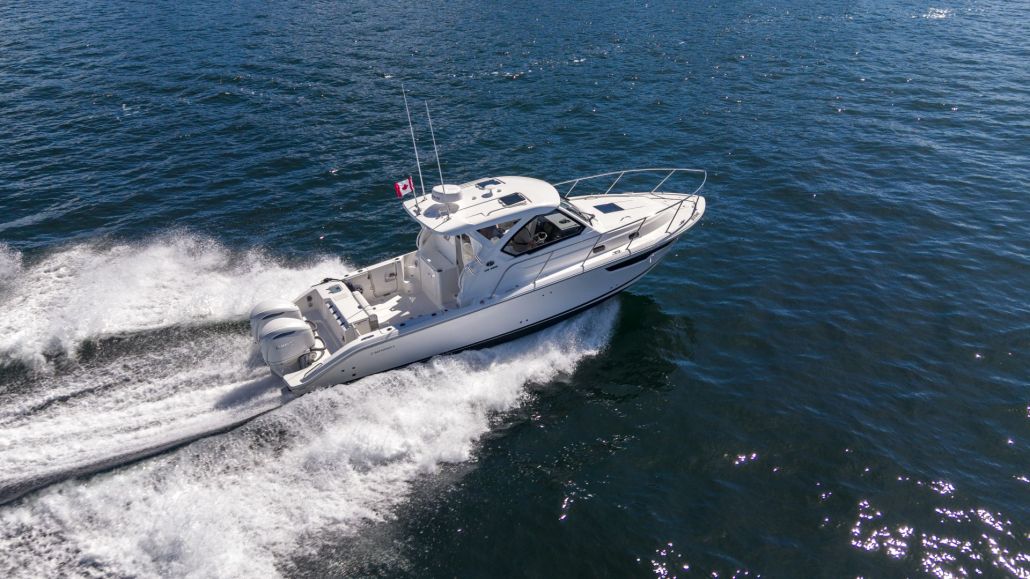

Pursuit OS 325 Offshore 2025

Offshore and on point. Agile and seaworthy. Elevated and invigorated.
There are so many ways to describe the all-new OS 325. With a 34’6″ LOA powered by twin 300 or 350 Yamaha® engines, it has been redesigned from the hull up, making it the definition of yacht-caliber luxury.

She shines with intelligent space utilization, heavy on features that matter, like a single-piece, optically-clear front windshield, forward-facing bridge deck seating, more rod holders, a dive door and large transom walkway. Plus, the well-appointed, modern interior finishes and sleek exterior curves are completely new yet completely Pursuit all at once.

The centerline walkway allows guests to move with ease from zone to zone with minimal conversions and maximum enjoyment. Meals can be prepared in either the cabin or the cockpit entertainment center which features a grill and sink. Dual refrigerators provide cold storage in both areas.

Below deck, you’ll instantly notice the class-leading open cabin space and storage, thanks to the streamlined galley. From the generous berth you can listen to the lapping waves and watch the moonlight stream in through the large hull-side windows. With the Pursuit OS 325, your time spent on the water will never be the same.

Standards

LENGTH OVERALL 34′ 6″ (10.52 M)
BEAM 10′ 10″ (3.30 M)
HULL DRAFT
Motors up 2′ 2″ (.56 M)
Motors down 2′ 9″ (.81 M)
CLEARANCE W HARDTOP 9′ 3″ (2.79 M)
DRY WEIGHT (Approx.) 13,740 lbs (6,232 kg)
FUEL 300 US Gallons (1,136 L)
WATER 30 US Gallons (114 L)
HOLDING 16 US Gallons (68 L)
TWIN F300 ENGINES 600 hp (447 kw)
  • Pursuit® Protection Plan:
    5-year hull/deck structural warranty
    5-year blister-free warranty
    2-year limited warranty
  • Pursuit Fresh White Gelcoat
  • Hand Laminated Hull with Vinyl Ester Resin and Engineered Fabrics
  • 5 Ply Resin Infused Composite Transom System with Patented Transom Reinforcement Grid
  • Infused Fiberglass Structural Grid System with Molded Finish and Integrated Bilge Water Management System
  • Foam Filled Structural Grid
  • Bronze Thru Hull Fittings Below Water Line
  • Chrome over Bronze Thru Hull Fittings Below the 7 Degree Heel Line
  • Stainless Clad Composite Thru Hull Fittings Above the 7 Degree Heel Line
  • Bronze Garboard Drain
  • Trim Tabs, Lenco Electric with Auto-Retract
  • Bow Eye, 5/8″ 316L Stainless Steel
  • Integrated Transom Platform Extensions Outboard of Engines
  • Boarding Ladder, 4-Step Telescopic (Mounted in Transom Platform Extension)
  • Anchor System, Integrally Molded Thru-Stem
  • Bow Thruster, 3.0 HP (2.2 kw) with Group 31 AGM Battery, Switch and Fuse
  • Dedicated Transducer Location
  • Forward hull compartmentation with one (1) 1100 GPH bilge pump with automatic float switch
  • Molded Hull Side Frameless Tempered Glass Windows
  • Hull and Deck Joint Mechanically Fastened and Thru-Bolted at Cleat Locations
  • Rub Rail: High Density PVC with Solid 316L Stainless Steel Insert
  • Transom Cap, 316L Stainless Steel
  • Molded One Piece Deck and Cockpit Liner with Non-Skid Pattern Area and Overboard Drains
  • Flush Mounted Integral Anchor Locker with Gas-Assisted Fiberglass Lid including: Horizontal Anchor Windlass with Switch at Helm and Remote at Anchor Locker, 316L Stainless Steel Hinging Thru-Stem Anchor Roller with 8″ Mooring Cleat and Chain Binder, 22lb Stainless Steel Plow Style Anchor, Self-Righting Shackle, 200′ Rode (1/2″ 8 Plait including 20′ of ¼” G4 Chain), Fresh and Raw Water Connections, LED Courtesy Light
  • Cleats, 316 Stainless Steel, 10″ Pop Up (2) Stern, 10″ Fixed (4) Spring and (2) Bow
  • Molded Recessed Hatches with Gaskets and 316L Stainless Steel Latches and Overboard Drain Tracks
  • Molded Transom Walkthrough with Hinged Transom Door, 316L Stainless Steel Latch and Magnetic Catch
  • Self-Draining Cockpit with Molded Water Management System and Drains w/316L Stainless Steel Drainage Grates
  • Bow Rail, one-piece, welded 316L Stainless Steel, with 1 1/4″ Top Rail and 1″ Stanchions
  • Transom Grab Rails, 316L Stainless Steel, (Port and Starboard)
  • Single-Level Splashwell Deck with Nonskid for Athwartship Access
  • Navigation Lights, LED, 2 Mile
  • Foredeck Hatch, 17″ x 17″, Flush with Adjuster and Screen
  • Opening Port Lights (4) with Screens and Stainless Steel Frames
  • 316L Stainless Steel Foredeck Grab Rails
  • Custom Cockpit Upholstery with Dri-Fast Foam and Mesh Backing
  • Custom Molded Side Boarding Door (Port) with Heavy Duty 316L Stainless Steel Hardware and Deck Mounted 316L Stainless Steel Keyway Plate for Dive Style 4-Step Telescoping Ladder (with dedicated storage on underside of mechanical space hatch)
  • Captain’s Chair with Swivel Base, Foldable Armrests, Fore and Aft Adjustment and Flip-up Bolster
  • Molded Port Bridge Lounge Seating with Fold-Out Forward-Facing Backrest, Molded Footrest Area, Equipment Storage Under Seat Base, (3) 316L Stainless Steel Drink Holders and Padded Console with Recessed Flat Storage Area
  • Audio Entertainment System: Custom-Tuned JL Audio Stereo System with Bluetooth® Compatible Media Master MM105-HR Hidden Source Unit, Helm-Mounted Volume Control Knob, Premium M6 Coaxial Speakers with Classic Grilles – 7.7″ (4), 6.5″ (2), 10″ Subwoofer (1), DSP Amplifier, Wireless Remote Control, and FM Antenna with Ratchet-Mount Base
  • Molded Entertainment Center with Electric Grill, Sink, Hot/Cold Mixing Faucet, Cutting Board, Dedicated Trash Can Storage, Tackle and Gear Storage, 120v Outlet with GFCI Protection and Hinged Fiberglass Lid and Doors
  • Galley Space with Pull-Out Style 2.3 cu. ft. Refrigerator/Freezer, Corian Countertop, and (2) 316L Stainless Steel Extra-Deep Drink Holders
  • Molded Aft Facing Cockpit Seat with Tub Storage Below
  • Folding Transom Seat with Patented Adjusting Backrest
  • Cockpit Machinery Access Hatch
  • Fresh Water Wash with Hot/Cold Mixing Valve and Chrome over Brass Pull-out Sprayer at Transom Door
  • Raw Water Outlet in Cockpit with Quick Connect Fittings and 25′ Hose
  • LED Cockpit & Bridge Deck Courtesy Lights and Blue Mid-Level Accent Lights
  • Aft Cockpit Extra-Deep 316L Stainless Steel Drink Holders (4)
  • Rod Holders (12), Stainless Steel, (4 Gunwale, 4 Transom, 4 Hardtop Supports)
  • Lighted Oceana Blue 32 Gallon Recirculating Livewell with Dedicated Bronze Strainer and Overboard Discharge
  • Under Gunwale Rod Storage (Starboard)
  • Fish Boxes with Molded Insulation and Diaphragm Pumps with Overboard Discharge (Port [27 gallons] and Starboard [24 gallons])
  • Cockpit Tackle Center with Plano Boxes and Storage Drawer
  • Transom Cutting Board
  • Molded Fiberglass Aft Tilting Helm with Instrumentation Visor and Electronics Mounting Surface
  • Fold-Down Platform Step with Nonskid for Secondary Standing Operating Position
  • Edson 316L Stainless Steel Steering Wheel with Control Knob and Non-Slip Grip on Sport Tilt Plus Helm
  • Yamaha Electronic Steering Control with Programmable Steering Friction
  • 12V Switch Panels with Back Light Function Displays
  • JL Audio MM105-HR Hidden Source Unit (full-function control on Garmin® MFDs), Helm-Mounted Volume Control Knob, and USB Input
  • Wireless Phone Charger
  • Compass with Light
  • Trim Tab Control Panel and Indicator
  • Bow Thruster Joystick Control
  • 12V Outlet (1)
  • Dual USB Charger (1)
  • Drink Holders, 316L Stainless Steel (2) – Extra Deep
  • Fire Extinguisher
  • Garmin® Electronics Package: Dual GPSMAP 8616 [1 XSV] with Pursuit Custom Dash Panel, Airmar B175M 1kW CHIRP Transducer, NMEA 2000 Starter kit, Yamaha MFDI Interface, and VHF Radio with Antenna and Ratchet-Mount Base
  • SirenMarine® Connected Boat® Smart Boat Monitoring & Theft Deterrent System: Siren 3 Pro Main Device with Mobile App Interface, GPS Vessel Tracking and Sensors for Battery, Shore Power, Bilge and Security Monitoring (includes 3-month subscription)
  • Molded Fiberglass Hardtop with Integrated Visor and Designated Locations for Radar, Outriggers, and Spotlight or Flir Camera
  • Powder Coated Aft Structural Hardtop Supports with Rod Holders (4)
  • Custom Windshield System with Optically Clear Laminated Windshield Glass, Tempered Side Glass with Infused Fiberglass Frame and Electrically Actuated Center Vent Window
  • Port and Starboard Heavy Duty Pantographic Windshield Wiper System with Washer Control
  • Power-Actuated Stainless Steel Anchor/Stern LED Navigation Light with Burgee Rings and Embroidered USA Flag
  • Four (4) Tri Color LED Lights
  • Aft Facing LED Spreader Lights (2)
  • 316L Stainless Steel Fore/Aft Underside Grab Rails
  • Powder Coated Fore/Aft Topside Grab Rails
  • Integrated Stereo Speakers (4)
  • Horn, Trumpet
  • Integrated Glove Box Over Helm Area
  • Port and Starboard Ventilation Hatches with Dual-Purpose Sliding Screens/Shades
  • Side Curtains w/60 mil Strataglass™
  • Molded Acrylic Access Door with Gasket, 316L Stainless Steel Locking Latch and Interior/Exterior Grab Rails
  • Cabin Entry Steps with Solid Wood Treads
  • Molded Cabin Hull and Deck Liner with Custom Solid Wood Tongue and Groove Floor Accents, Mechanical Access, Drainage and Sound Damping Insulation
  • Laminated Interior Cabinetry with Corian Tops & Accents
  • Custom V-Berth Seating that Converts into Berth with Storage Space Below
  • Solid Wood Table with Power Adjustable Pedestal
  • 24” Smart TV (120V)
  • Flush Mounted Foredeck Hatch with Screen
  • Mid-berth Full-size 3″ Foam Mattress and Quilted Cover
  • Mid-berth Hanging Locker and Storage to Portside
  • Port & Starboard Hull Side Windows with Custom Window Trim & Pleated Blinds
  • 316L Stainless Steel Opening Port Lights (4) with Screen
  • Switch Panel for Overhead LED Lights, Reading Lights, LED Floor Accent Lights and Actuated Table
  • Horizontal Rod Storage for (4) Rods
  • CO Monitor
  • Fire Extinguisher
  • Corian® Galley Countertop with Flip-Up Counter Extension
  • Galley Lower Storage Cabinet with Drawers (2) and Slide-Out Trash Can
  • 12V 1.06 cu. ft. Stainless Steel Drawer-Style Refrigerator
  • Galley Pantry Storage Locker with Storage Shelves and Hardwood Keepers
  • Galley Side Upper & Lower Cabinet Storage with Doors
  • 12V LED Overhead Lights
  • 12V Outlet and dual USB Charger
  • 120V 1.1 cu. ft. Stainless Steel Faced Microwave Oven
  • 120V Outlet with GFCI Protection (1)
  • Fiberglass Private Head Compartment with Non-Skid Pattern Area
  • Custom 1 1/4″ Wood Framed Entrance Door with Custom Latch and Towel Hooks
  • Vanity with Corian® Countertop, Recessed Sink, Faucet with Hot/Cold Pull-out Shower Wand, Grab Rail/Towel Rack, Storage Below and Vanity Mirror (with storage behind)
  • Vacuum Flush Marine Head with 18 Gallon Holding Tank, Macerator Discharge Pump, Stainless Steel Deck Pump-out Fitting and Bronze Thru Hull Fitting with Seacock
  • Fiberglass Toilet Seat Cover
  • Shower Curtain with Track
  • 316L Stainless Steel Opening Port Light with Screen
  • Toilet Tissue Holder
  • Shower Sump Box Drain with Automatic Discharge Pump
  • Switch Panel for Overhead LED Lights & LED Floor Accent Light
  • 120V Outlet with GFCI Protection (1)
  • UL® Rated Fully Tinned, Color Coded Copper Wire
  • Custom In-House Built, Heat Sealed, Mechanically Crimped, Color Coded Battery Cables
  • Custom In-House Built, One-Piece Electrical Harness with Waterproof Connectors and Chafe Protection
  • Powder Coated, Aluminum, Screen Printed (Front and Back) DC Main Distribution Panel (in Bridge Deck)
  • Bonding System: Thru Hull Fittings Below Water Line, Trim Tabs, Zinc Anode and Garboard Drain
  • Five Battery System: Port Engine (1), Starboard Engine (1), Bow Thruster (1) (AGM), House (1) (AGM) and Electronics (1) (AGM)
  • Single 120V 30 Amp 60 Cycle Dockside Power Connection with AC Main Distribution Panel (in cabin) and 50’ Dockside Power Cord
  • Isolation Transformer
  • 120V Outlets with GFCI Protection
  • 12V Outlets and USB Charging Ports
  • 40 Amp Battery Charger for House, Electronics and Bow Thruster Batteries
  • 20 Amp Battery Charger for Engine Cranking Batteries
  • Grounding Bus Bar
  • Electronics Fuse Block
  • Molded Interior White Gel Coat Structural Foundation
  • Molded Hatch with Gasket, Stainless Steel Gas Spring, and Dedicated Storage for Hull Side Boarding Ladder
  • Molded Bilge Sump Area
  • Stern Anchor, 4 lb. Aluminum Adjustable Fluke-Style with 50′ of 1/2″ Anchor Rode, 5′ of 1/4″ G4 Chain, and Custom Pursuit Storage Bag
  • Two 1500 GPH Bilge Pumps with Electronic Switches (One High-Water with Alarm) and Stainless Steel Clad Composite Thru Hull Fittings
  • Fresh Water Pump with Filter
  • Raw Water Pump with Bronze Sea Strainer, Seacock and Thru Hull Fitting
  • Livewell Cyclone Pump with Bronze Sea Strainer, Seacock and Thru Hull Fitting
  • Dedicated Fish Box Diaphragm Evacuation Pumps
  • LED Machinery Space Light
  • EPA Compliant Lined 150 Gallon (Port and Starboard) Rotomolded Fuel Tanks (2) with Engine Pickups, Shutoff Valves, Digital Level Indicator and Deck Fuel Fill Plates
  • Custom Built Premium Fuel Feed Lines with Mechanically Crimped Fittings
  • Two (2) Yamaha® Water Separating Fuel Filters with Primer Bulbs
  • 30 Gallon Water Tank and 316L Stainless Steel Deck Fill Plate
  • Premium Sea Tech Color Coded Water Hose System with Mechanically Crimped Ends
  • Pressure Sensing/Variable Speed Pump
  • Fresh Water Distribution Manifold with Dedicated Valves
  • Dockside Fresh Water Inlet with Pressure Regulator
  • 6 Gallon Stainless Steel Water Heater, 120V/60 Cycle
  • Cockpit Shower with Hot/Cold Mixing Valve

Options

  • Twin Yamaha® Digital F300 V6 Offshore (Pearlescent White) with Integrated Digital Electric Steering (DES) and Helm Master® EX Digital Electronic Control (DEC) (Does Not Include Joystick Control), Multifunction Display Interface
  • Twin Yamaha® Digital F350 V6 Offshore (Pearlescent White) with Integrated Digital Electric Steering (DES) and Helm Master® EX Digital Electronic Control (DEC) (Does Not Include Joystick Control), Multifunction Display Interface
  • Yamaha® Joystick Control with Full Maneuverability (Set PointTM and Autopilot)
  • Hull Color
    Carbon, Neptune Gray, Sea Mist, Flag Blue, Arctic Blue, Fresh White
  • Full Bottom Gelcoat to Keel of Boat (Excludes: Flag Blue)
  • Helm Color
    Carbon, Neptune Gray, Sea Mist, Flag Blue, Arctic Blue, Fresh White
  • Boot Stripe Color
    Black/Black (Standard), Navy/Navy, Platinum/Platinum, Red/Red, Scarlet/Scarlet, Arctic White/Quartz Gray
  • Upholstery Color
    Sea Salt (Standard), White
  • Generator (5.0kw 120v/60Hz Fischer Panda Genset) with 16 Gallon Diesel Tank
  • Cabin Air Conditioning with Reverse Cycle 120v/60Hz (10,000btu) (takes place of storage under starboard V-berth cushion)
  • Cockpit Air Conditioning with Reverse Cycle 120v/60Hz (12,000 btu) (Includes Cockpit Grill)
  • Spotlight (ACR RCL-100 LED) with Remote Control at Helm
  • Underwater Lights (3) All Color Sea Blaze Quattro Spectrum
  • Fiberglass Cockpit Table with Dedicated Storage
  • Bridge Deck Teak Table with Dedicated Storage
  • Forward Deck Sun Pad with Chaise Style Adjustable Backrests (2) and Stamoid Cover
  • Starboard Side Folding Seat Under Gunwale (deletes gunwale rod rack)
  • Premium Stereo Upgrade: All Speakers Upgraded to Sport Grilles with Full Spectrum Backlighting (controlled through MFDs), Two (2) Additional 6.5″ Coaxial Speakers, One (1) additional 10″ Subwoofer, One (1) Additional Custom-Tuned DSP Amplifier and SiriusXM® Receiver with Antenna (Incudes 3 Month Subscription)
    Note: for visibility purposes, the two forward hardtop overhead 7.7″ speakers are not backlit
  • Custom Hardtop Integrated Electric Retractable Sunshade with One Touch Operation
  • Bow Mediterranean Sunshade, Removable with Stowable Hardware
  • Sunbrella® Canvas Color: Black, Tweed, Cadet Gray or Navy
  • Upgrade Standard Canvas – Stamoid® (White)
  • 3 pc. Drop Curtain – Sunbrella®
  • 3 pc. Drop curtain – Stamoid®
  • Aft Curtain – Sunbrella®
  • Aft Curtain – Stamoid®
  • Instrument Cover – Sunbrella®
  • Engine Covers (2)- Sunbrella®
  • Hardtop Mounted Rod Holders (5)
  • Outriggers with 18′ Telescoping Poles and Rigging Kit
  • Outriggers – Upgrade to 20′ Carbon Fiber Telescoping Poles (Need to Order Outriggers)
  • Garmin® Radar GMR 24 xHD (Dome)
  • Garmin® GC-14 Rear Facing Camera
  • FLIR Night Vision with Image Stabilization (Cannot be Ordered with Spotlight Option, May Not be Available for Purchase Outside of the U.S.)
  • SiriusXM® Weather Receiver (Subscription Required)
  • Tranquil Seas (Standard)
  • Coastal Sunrise

Layout
